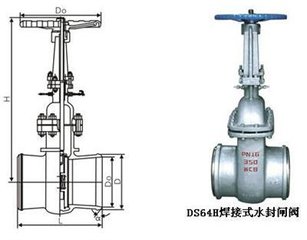

主要結構特點及用途Chief strucure features and usages
|
|
1、本產品的閥蓋填料室具有水密封結構，當接口通人壓力為061MP的水時，可使系統與大氣隔離，保證系統具有良好的氣密性
|
|
2、S/Z型系列采用雙閘板雙向彈性密封、啟閉靈活、迅速、密封可靠。
|
|
3、產品結構簡單、緊湊合理、檢修方便、使用壽命長
|
|
4、在管路上作啟閉裝置用，必須處于全開或全閉狀態，不得用于調節流量
|
|
5、閥們連接方式有法蘭和焊接兩種，驅動方式為手動和電動
|
|
6、S系列水封閥門適用于公稱壓力100MPa，工作溫度425℃，工作介質為水、蒸汽、油品和非腐蝕氣體的管路上作啟閉裝置用，尤其適用于火電廠汽機真空冷凝系統
|
|
1.The chamber of packing of the valve's bonnet is of a water-sealed structure,which,when the water of 0.6-1MPa pressure goes into the mouthpiec,can make the system isolated from air to ensure the system with a good leak proofness
|
|
2.Model S/Z series use dual-gate dual-direction elastic sealings.being flesible and fast to open and close,reliable sesling
|
|
3.Simple,compact and reaso able structur,easy to overhaul and long duration
|
|
4.When to be used as the open&close device on pipelines,it must be in fully-opened or fully-closed state and unallowed to be used for flow adjustment
|
|
5.Two ways of connection:by flange and welding,two driving ways:manually and electrically
|
|
6.Suitable to act as the open & close device for the pipelines with the working medium of water,steam,oil goods and non-corrosive gas,especially for the vacuum condensation system of the steam tufbine in steam power palnts.
|
